Power Supply
Power Supply
● Safe: open circuit protection function. When the high voltage end is in open circuit or not connected well, the power supply will start automatic protection, avoid high voltage arc effectively. High voltage discharge function, no static when turning off.
● Intelligence: built-in control, can communicate with RD controller, and it can communicate with max 32pcs power supplies by cascade connecting, then the controller panel can display working
● Compatibility: It contains active PFC circuit to achieve higher power factor and compatible for different input voltage AC90-264V 50/60Hz. And it effectively resist the influence of large changes in grid voltage on the output current.
● Simple: it can be controlled by 0~5V analog signal or 5V PWM signal.
● Stability: The newest current control makes laser output more stable, extend the laser tube working life. In the entire input voltage range, the maximum current is guaranteed to be constant.
Inquiry Now
1
0.0 0.0
Product description


Product Feature

Beijing HM Laser Co., Ltd.

Practical, Sincere, Reliable, Creative, Efficiency



Safe



Open circuit protection function. When the high voltage end is in open circuit or not connected well, the power supply will start automatic protection, avoid high voltage arc effectively. High voltage discharge function, no static when turning off.

Intelligence



Built-in control, can communicate with RD controller, and it can communicate with max 32pcs power supplies by cascade connecting, then the controller panel can display working

Compatibility



It contains active PFC circuit to achieve higher power factor and compatible for different input voltage AC90-264V 50/60Hz. And it effectively resist the influence of large changes in grid voltage on the output current.

Simple



It can be controlled by 0~5V analog signal or 5V PWM signal.

Stability



The newest current control makes laser output more stable, extend the laser tube working life. In the entire input voltage range, the maximum current is guaranteed to be constant.

1、Safe: open circuit protection function. When the high voltage end is in open circuit or not connected well, the power supply will start automatic protection, avoid high voltage arc effectively. High voltage discharge function, no static when turning off.

2、Intelligence: built-in control, can communicate with RD controller, and it can communicate with max 32pcs power supplies by cascade connecting, then the controller panel can display working

3、Compatibility: It contains active PFC circuit to achieve higher power factor and compatible for different input voltage AC90-264V 50/60Hz. And it effectively resist the influence of large changes in grid voltage on the output current.​

4、Simple: it can be controlled by 0~5V analog signal or 5V PWM signal.

5、Stability: The newest current control makes laser output more stable, extend the laser tube working life. In the entire input voltage range, the maximum current is guaranteed to be constant.

PRODUCT DETAIL

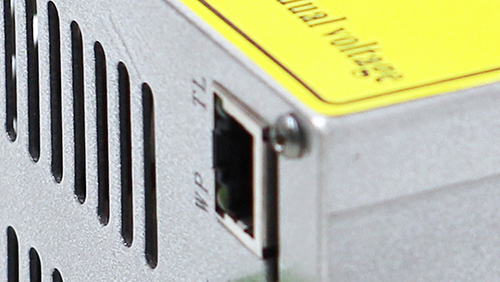

Network port To LCD display or 2nd Power Supply

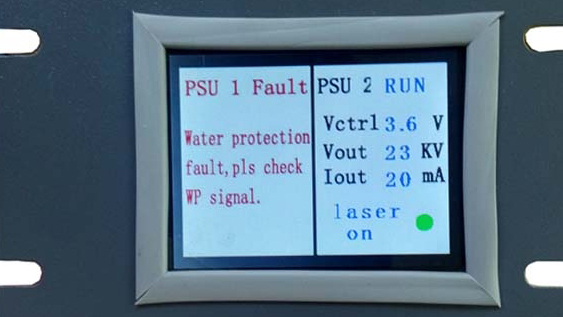

LCD Display Shows voltage, ampere, alarm

Specification



Model

P2

P4

P6

Input Voltage

AC90-250V

AC Frequency

47--63Hz

Max Input Power

600W

650W

900W

Max Input Current(when 90 input)

5.5A

6A

8A

Max Output Voltage

40KV

45KV

55KV

Max Output Current

28mA

32mA

38mA

Efficiency

≥90%(full load)

MTBF (mean time between failure)

≥10000小时

Response Speed

≤1mS(the time from signal is given to output current reaches 90% of set current)

Withstand Voltage

Input-output,input-shell:AC1500V 10mA 60s;

Working Environment

Temperature(-10~40)℃ ,relative humidity:≤90%

Cooling

Force air cooling

Supporting Laser Tube Power

50-80W

80-120W

130-180W

Dimension L*W*H(mm)

235*144*104

278*144*104

330*144*104

Weight(KG)

2.15kg

2.45kg

3.2kg

Color

Sliver gray
